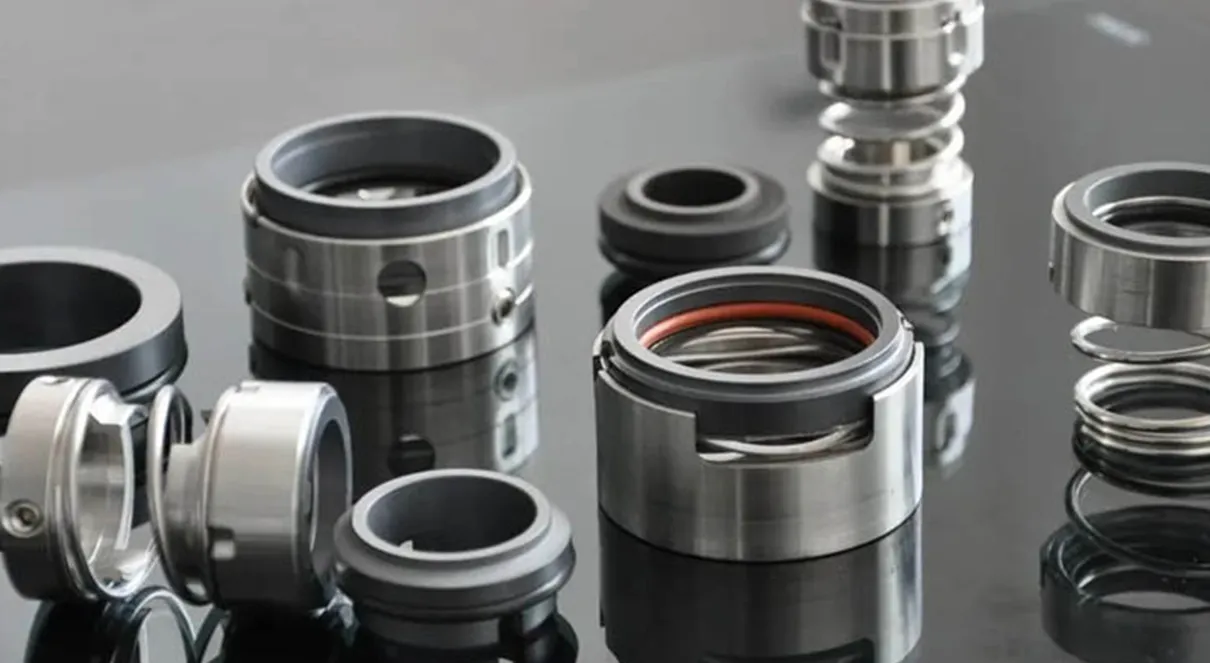

How many types of mechanical seals are there?

Mechanical seals are unique because they involve a rotating part, a stationary part, and a spring. The seal itself forms the interface between the moving and stationary components. Maintaining a reliable seal in this junction is challenging, and the spring ensures adequate pressure to keep the seal intact despite movement.

To be effective, mechanical seals must be precisely sized and made from materials that can withstand the operating temperature, chemical exposure, and mechanical stress of their specific application. While seals can be custom-designed, most mechanical seals fall into eight main types, each suited for particular industrial uses.

1. Wave Spring Mechanical Seals

Primarily used for high-viscosity liquids, wave spring seals are common in pharmaceutical, dairy, brewery, and food processing industries. Some designs are specially constructed to fit shallow or confined seal housings.

2. Water Pump Seals

Water is a poor lubricant for seal faces, so water pump seals require high-quality materials. They are widely used in shower pumps, irrigation systems, heating systems, swimming pools, and spas.

3. Seat Bi-Directional Mechanical Seals

These seals use wave spring technology and may include an anti-rotation pin. They are designed to withstand high-temperature media and are commonly employed in chemical processing applications.

4. Diaphragm Seals

With parallel springs, diaphragm seals are versatile and used in agitators, compressors, mixers, pumps, and other rotary shaft equipment. They also protect pressure-sensing instruments from the fluids whose pressure is being measured.

5. Balanced Diaphragm Seals

Balanced diaphragm seals incorporate a bellows disk to prevent contact with the shaft and protect against seal failure, especially where thin metal drive components might otherwise cause damage.

6. Conical Mechanical Seals

Conical seals are extremely versatile and robust, available in a wide range of materials to suit diverse operating environments. They are widely used across multiple industries due to their durability and adaptability.

7. Parallel Mechanical Seals

Parallel seals can use different methods to provide the face to the seal and may be supplied with left- or right-hand wound springs. They are general-purpose seals, commonly used in marine pumps, wastewater, pulp and paper, textile applications, and refrigeration compressors.

8. Bellows Mechanical Seals

Bellows seals are ideal for hygiene-sensitive applications and media containing solids. They are non-clogging, highly reliable, and self-adjusting, available in a wide range of standard sizes or custom-made to suit specific requirements.

With so many types of mechanical seals available, choosing the right one for your equipment can be challenging. At Hydrexa, our experts can help analyze your specific application and recommend the most suitable mechanical seal type to ensure maximum efficiency, reliability, and longevity.
